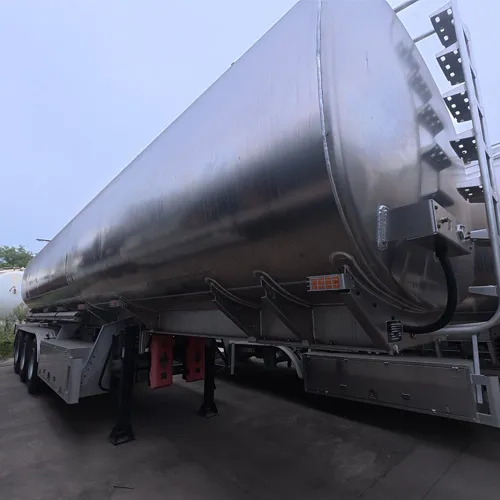

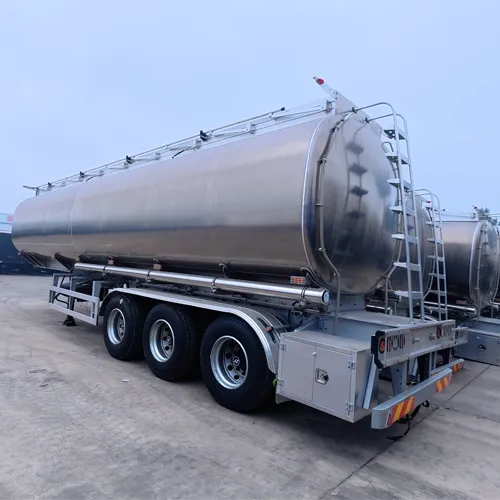

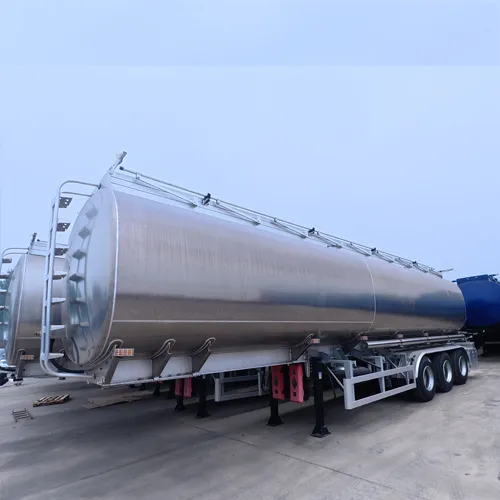

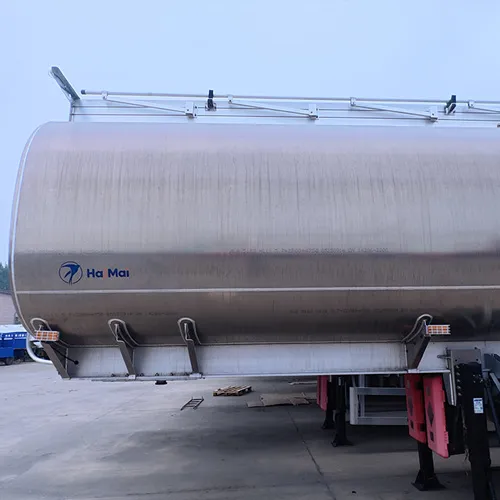

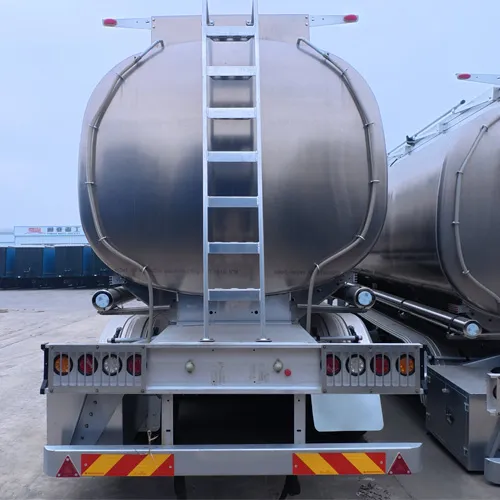

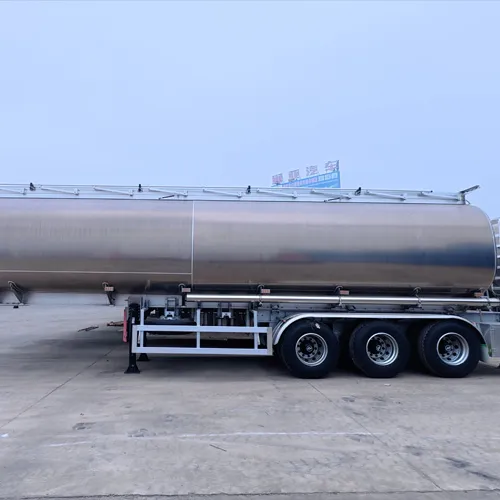

Stainless steel tanker
Stainless steel tank
Product introduction
The stainless steel oil tank body is made of stainless steel plate welding, which is corrosion resistant and does not rust, and the medium in the tank will not be contaminated by rust. It is suitable for transporting oil products such as diesel, gasoline, palm oil, edible oil, etc. It can be assembled on tank semi-trailers for oil supply and oil transfer at gas stations, and can also be used as fixed oil storage tanks. Compared with carbon steel tanks, it has high cleanliness and is suitable for customers who have requirements for oil purity.
core material
Main body:
304/316L stainless steel
(Optional)304 stainless steel: often used in fuel oil, palm oil, edible vegetable oil, more cost-effective, is the mainstream choice of oil tanks
316L stainless steel: stronger corrosion resistance, can be used in some weak corrosive media, suitable for seaside high-salt humid environments
Flange, manhole, nozzle supporting stainless steel accessories to avoid dissimilar metal corrosion
tank structure
Cylinder + elliptical head integrated welding, weld detection, strong sealing;
Built-in anti-wave board, vehicle running process buffer liquid impact, improve driving stability;

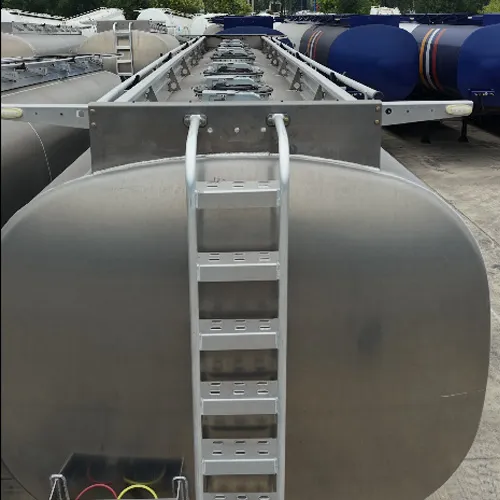

Top: stainless steel manhole cover, breathing valve, inlet, safety valve;

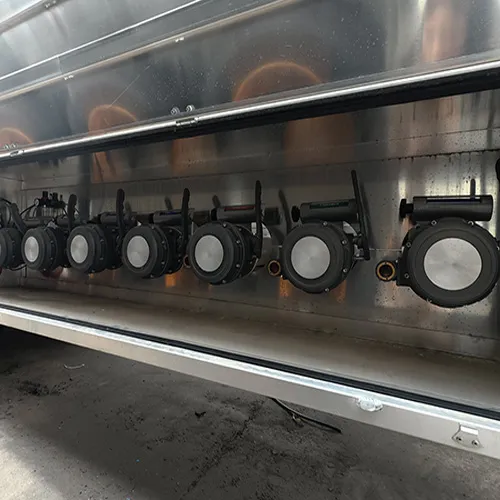

Bottom: discharge port, drain valve, drain port;
Support multi-warehouse separation (2 to 4 warehouses), and one car can transport a variety of different oils at the same time.
Anti-corrosion & internal and external treatment
Internal: Stainless steel itself has its own anti-rust ability, no need for epoxy coating, and no impurity contamination of oil;
External: polishing or sandblasting paint, can be selected on demand;
优势：不会像碳钢罐产生铁锈沉淀，油品洁净度高，长期使用维护简单。
Common volume specifications (mainstream of trailer tanks)
20M ³/25m ³/30m ³/35m ³/40m ³/45m ³, support custom size and warehouse layout
applicable medium
✅ Petrol, diesel, palm oil, all kinds of edible vegetable oil, cleaning liquid ❌ strong acid, strong alkali and other strong corrosive chemical liquids
Product core selling point
Oil cleaning
The tank does not rust, and will not produce rust impurities to contaminate the oil. It is the first choice for oil supply at gas stations.Corrosion resistance
Anti-humid, seaside salt spray environment, with a longer service life than carbon steel tanks.Easy to clean
The tank wall is smooth, making it easy to clean the residual oil in the tank.Multi-warehouse optional
The bicycle is divided into warehouses to transport different oil products, enhancing transportation revenue.Factory water pressure + airtight leakage test, safe and non-leaking;
Full set of stainless steel pipe fittings valves, can be customized fittings, tank size, frame matching.
optional accessories
Stainless steel manhole, breathing valve, emergency cut-off valve, oil drain ball valve, liquid level gauge, anti-static device, safety guardrail, ladder
Example of technical parameters (30m ³ stainless steel tank)
Volume: 30 cubic meters
Material: 304 stainless steel
Cylinder thickness: 5mm, head 6mm
Design pressure: 0.4MPa
Working temperature: -20 ℃~ + 60 ℃
Interior: anti-wave board, optional double compartment structure
Test: hydraulic test, airtight test
Precautions for use
Although stainless steel tanks are rust-proof, they cannot be loaded with highly corrosive chemicals.
Oil transportation must be equipped with anti-static grounding devices.
Regularly check valves and manhole gaskets to prevent leakage.
Avoid pitting damage caused by hard objects hitting the surface of the tank.
