Side curtain semi-hanging
Side curtain semi-hanging, product details
Product introduction

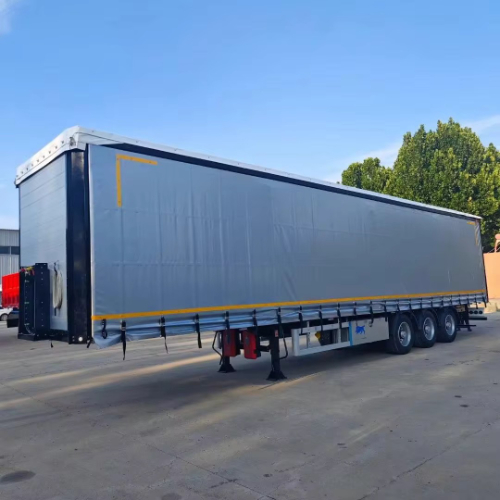

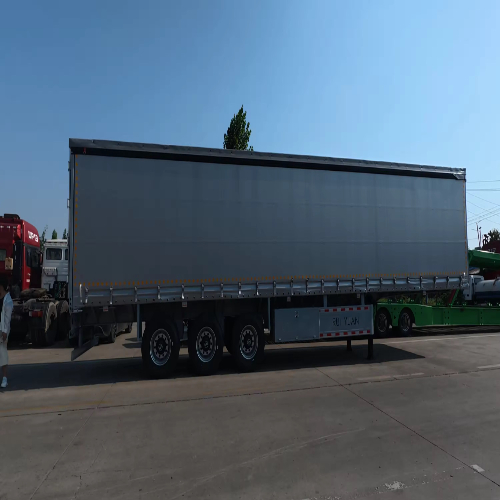

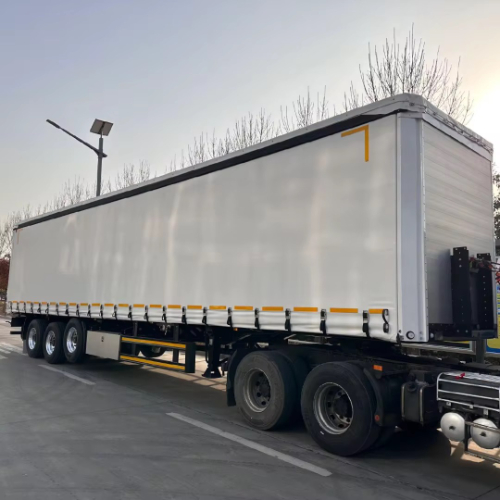

Side curtain semi-trailer with sliding waterproof tarpaulin curtain on the side, no need to disassemble and assemble the railing. The side can be fully opened, which is convenient for forklifts to load and unload goods from the side. It is suitable for pallet goods, cartons, bagged goods, etc. The tarpaulin is waterproof and dustproof to protect the goods from rain and sun. It is very practical in African trade, building materials, and food transportation scenes. The size of the whole vehicle and the height of the curtain can be customized.
core material
Main beam: Q345B high-strength carbon steel, thickened straight beam welded
Baseplate: patterned steel plate, wear-resistant and compression-resistant
Side curtain frame: carbon steel bending profile
Side curtain fabric: PVC waterproof and wear-resistant tarpaulin
Surface treatment: sandblasting rust removal, epoxy primer + anti-corrosion topcoat, anti-sun exposure and rust protection
Car body structure

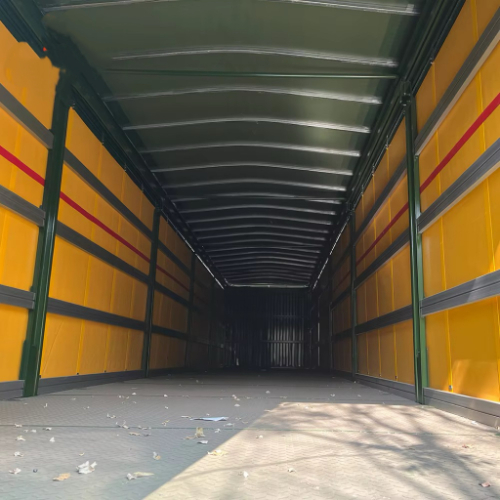

Heavy straight beam main beam, dense beam reinforcement, anti-twisting, heavy load without deformation;
Sliding PVC side curtains on both sides, track support, can be pushed and pulled left and right to open;
The curtain is equipped with a tension lock, which is rainproof and dustproof after locking;

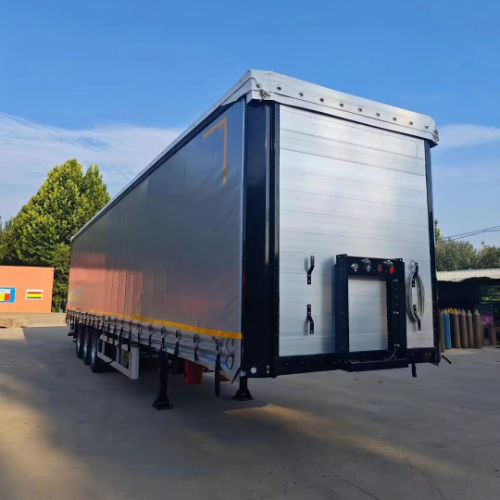

The front and rear parts are provided with fixed baffles.
The body is equipped with a binding rope hook, which is convenient for fixing pallet goods.
Optional 2-bridge and 3-bridge configurations.
Common specifications
Dimensions: 13000mm2500mm, length can be customized
Cord height: 2.4m~ 2.8m optional
Rated load: 30 - 50 tons

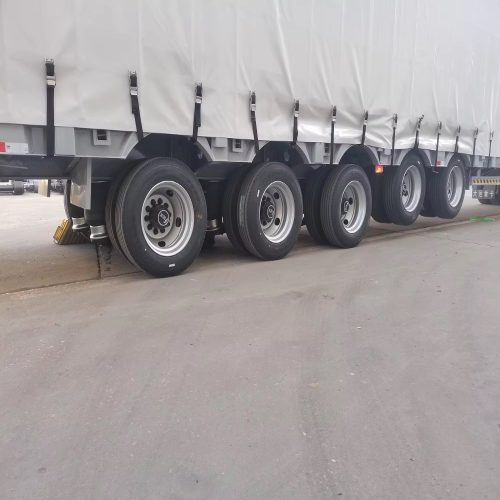

Suspension: Mechanical spring suspension (mainstream in Africa), optional air suspension
Axle: 13-ton axle
Applicable goods
✅ Pallet goods, cartons, bagged grain, fertilizers ✅ hardware building materials, packaging industrial goods ✅ all kinds of general goods that need to be rainproof and dustproof ❌ large pieces of sharp steel, high temperature materials, bulk sand and gravel (easy to scratch the tarpaulin)
Product advantage
Efficient loading and unloading
: The side curtain can be completely slid open, and the side of the forklift can be loaded and unloaded directly without entering the fork from the tail;Rainproof and dustproof
: PVC tarpaulin protects the goods from rain and sand;cargo protection
Prevent damage to the goods caused by sun and rain during transportation;Simple operation
: Push-pull side curtain, a single person can complete the opening and closing;Support customization
Vehicle length, curtain height, logo printing, and color can be adjusted as needed.
optional accessories
ABS brake system, spare tire frame, toolbox, reinforced rope hook, thickened PVC side curtain, LOGO spraying
Technical parameter example (three-bridge side curtain semi-hanging)
型号：Curtain Side Semi Trailer
Size: 13m 2.5m
Side curtain height: 2.6m
Material: Q345B high-strength steel, PVC waterproof tarpaulin
Axle: 313 tons
Suspension: Mechanical spring suspension
Tires: 12.00R22.5
Precautions for use
Take good protection when loading sharp objects to avoid scratching the PVC side curtain.
Be sure to tighten the side curtain lock before driving to prevent the tarpaulin from shaking and breaking when driving at high speed;
The goods are placed evenly, and partial loading is prohibited;
Regularly check the side curtain track, pulley and lock, and replace the damaged parts in time.
